AlNiCo, an early-developed permanent magnet alloy, consists of Al, Ni, Co, Fe and trace metals.

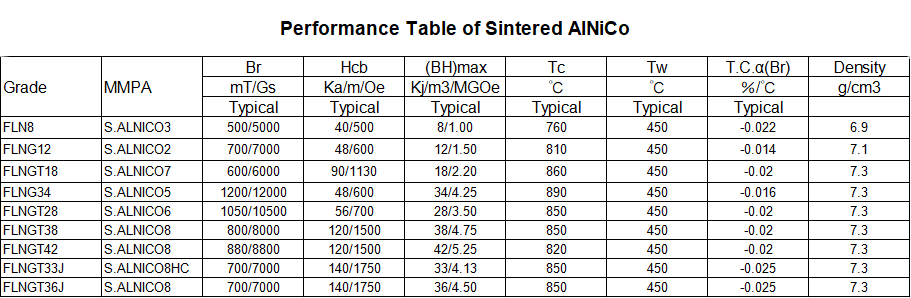

Sintered AlNiCo

Small size, tight blank dimensional tolerance, slightly lower magnetic properties than cast AlNiCo, good machinability

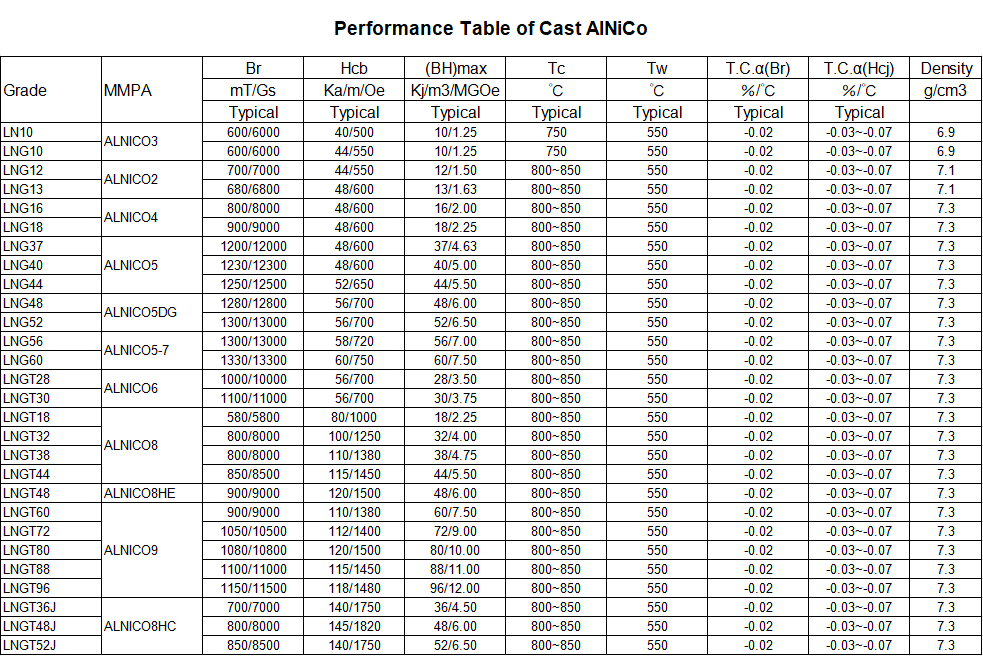

Cast AlNiCo

Can be made into various sizes and shapes, lowest reversible temperature coefficient, operating temperature over 600℃

Applications

Motors, electric guitar pickups, microphones, sensors, speakers, traveling wave tubes, cow magnets, various instruments and meters

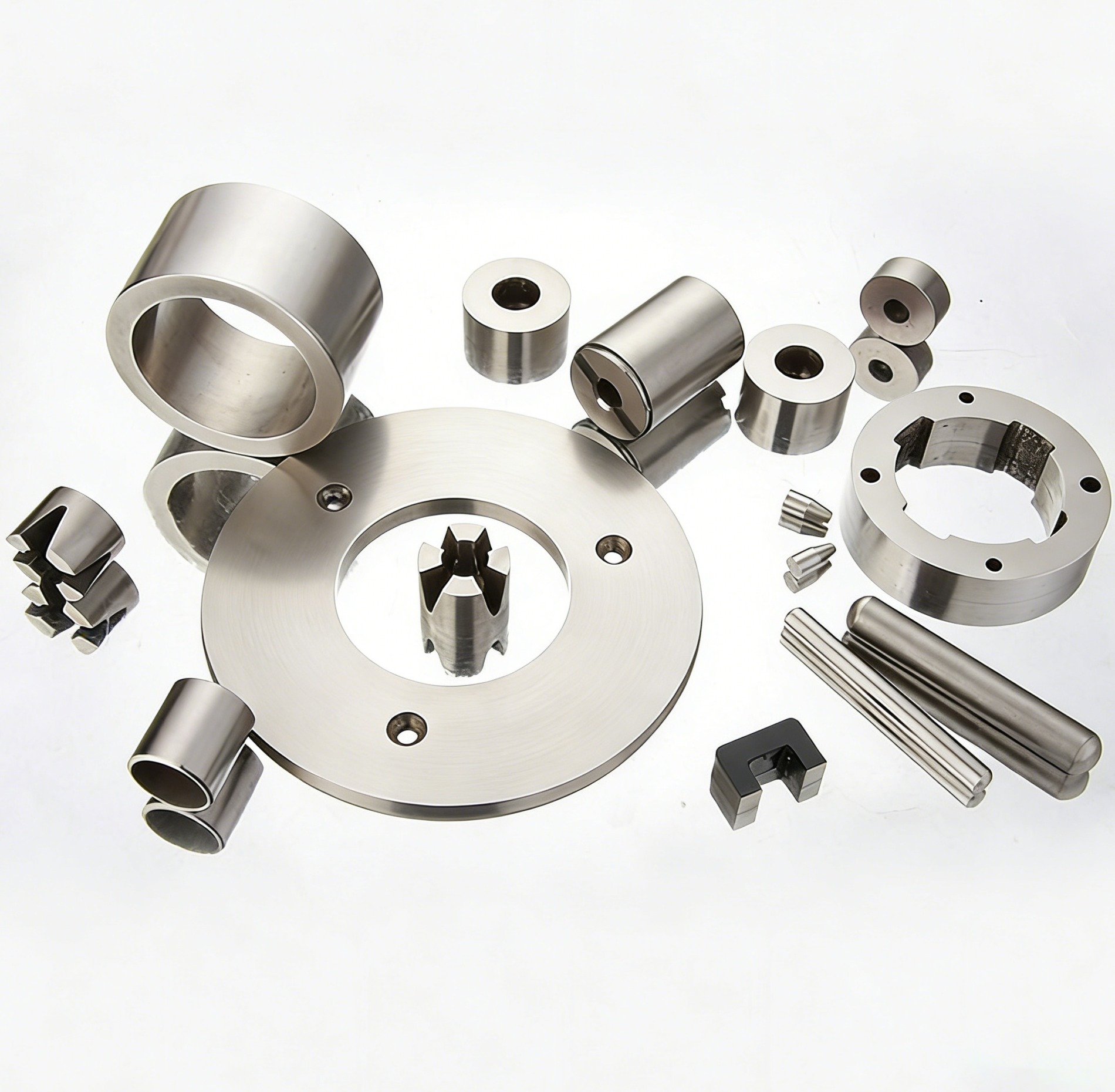

AlNiCo Magnet

Item	NdFeB Magnet	SmCo Magnet	Alnico Magnet
Max Temp	80-220℃	350℃	500-550℃
Magnetic Strength	Ultra High	High	Low
Temperature Stability	Medium	Excellent	Good
Corrosion Resistance	Poor	Excellent	Good
Brittleness	Brittle	Brittle	Tough
Cost	Medium	High	Medium
Best Application	General High Performance	High Temp & Precision	Ultra High Temp

Button

Key Features & Advantages

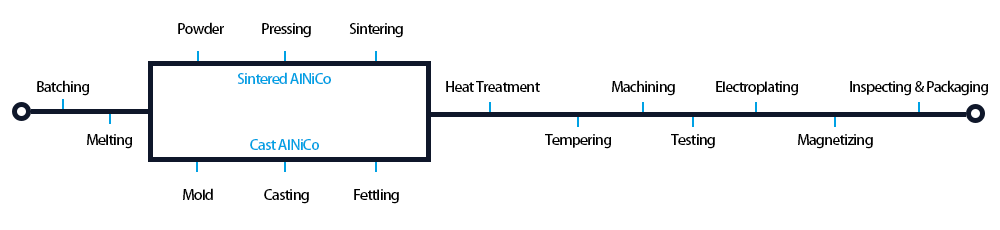

Alnico magnets have high magnetic strength and energy but low coercivity. They are less brittle than rare-earth magnets, with excellent corrosion resistance and temperature stability, and can work at very high temperatures. Made by casting or sintering, they can be made into complex shapes (such as horseshoe) that other magnets cannot.

Customization

Grade 5 and Grade 8 are the most common alnico grades. We can customize almost any shape and size according to your drawings from sintered or cast materials. Contact us for a quote and we will provide the most cost-effective solution.

Processing Notes

Alnico magnets are hard and brittle, easy to crack. They need careful processing and are not suitable for structural or decorative use. Regular machining is not applicable; cutting and grinding must be done before magnetization, and holes need EDM. We can process them as your drawings require.

Surface Treatment

Alnico magnets usually need no coating or plating due to good corrosion resistance.

Dongguan Yixing Magnetic Products Co., Ltd.

We has specialized in custom-shaped magnets for 10 years.We are a professional magnetic product solution provider integrating design, R&D, customization, production, sales and export.

With strong capabilities, we have long supplied magnetic Materials and customized solutions to leading brands including Honor, Xiaomi, Transsion, iFLYTEK, Xinwangda, Xpeng and Seres.Our products are widely used in 3C electronics, new energy, automotive, shipbuilding, smart home and industrial equipment.They are exported to more than 50 countries and regions in Europe, America, Japan, South Korea and Southeast Asia.

ABOUT US

MORE >

Send your requirements for a free quote within 24 hours.

FAQ

Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer of magnets and magnetic application magnets more than 10 years, support any customization based on customers' requirements.

Q: What is MOQ?
A: We offer flexible MOQ (even no MOQ) exclusively for qualified commercial buyers / distributors, our core advantage lies in large-scale bulk supply with stable quality and factory price.

Q: What is the normal lead time?
A: For stock products, we will send goods to you within 7 days after receiving the payment.
If we do not have them in stock, generally speaking, production time is 10-20 days.

Q: Do you provide samples? Is it free or extra?
A: Yes, we could sent you the sample in stock to check the quality for free charge but do not pay the cost freight.

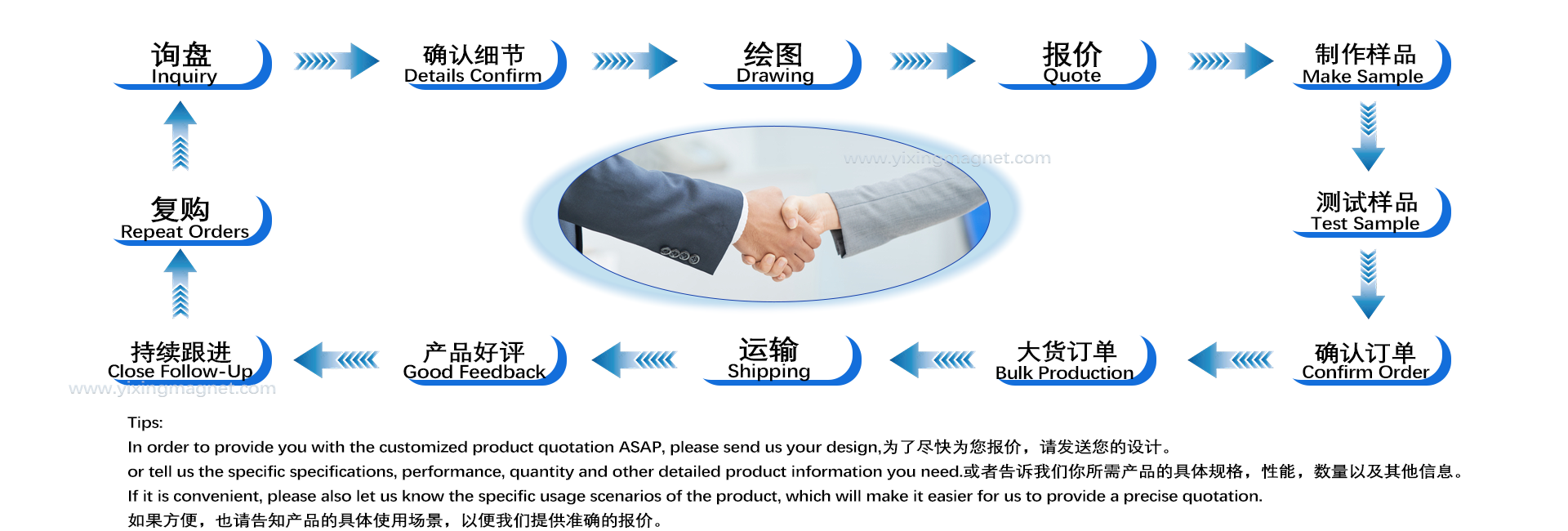

Q: What information do I need to supply when I have a inquiry?
