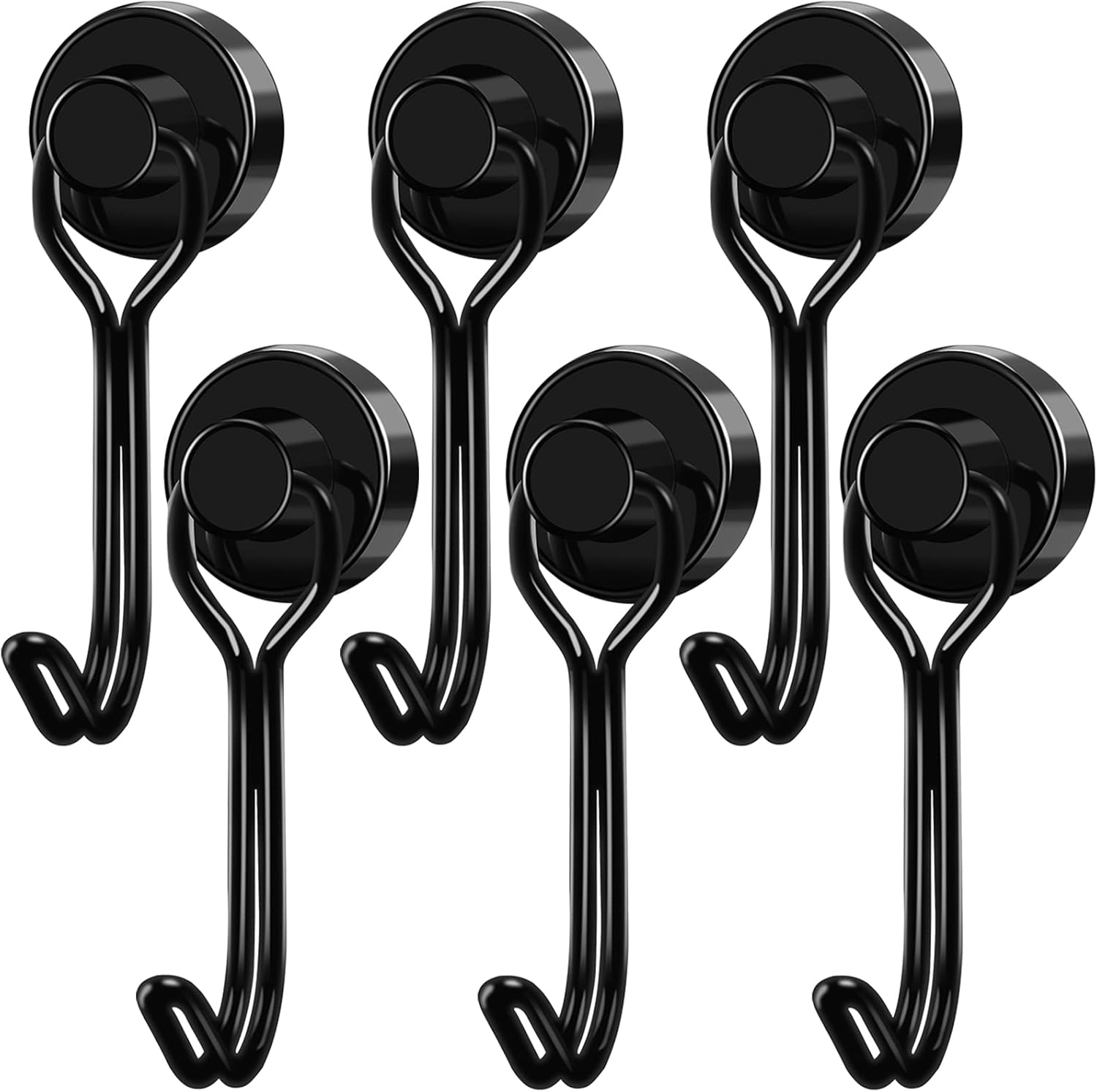

This new style steel housing swivel magnetic hook is equipped with high-quality neodymium magnet core, and the solid wear-resistant steel shell isolates external damage to extend service life. The 360°rotatable hook can adjust freely with installation angle and force direction, avoiding twisting and knotting of ropes and cables, and it is highly versatile for complex mounting surfaces and multi-angle hanging in industrial and outdoor applications. All steel housing hooks support custom color painting and personalized logo engraving or silk printing to meet differentiated brand display demands. Conventional stock sizes are limited, and we provide in-depth customization including special diameter, height, load grade, special mounting structure and brand logo to tailor products with exclusive specifications for customers.

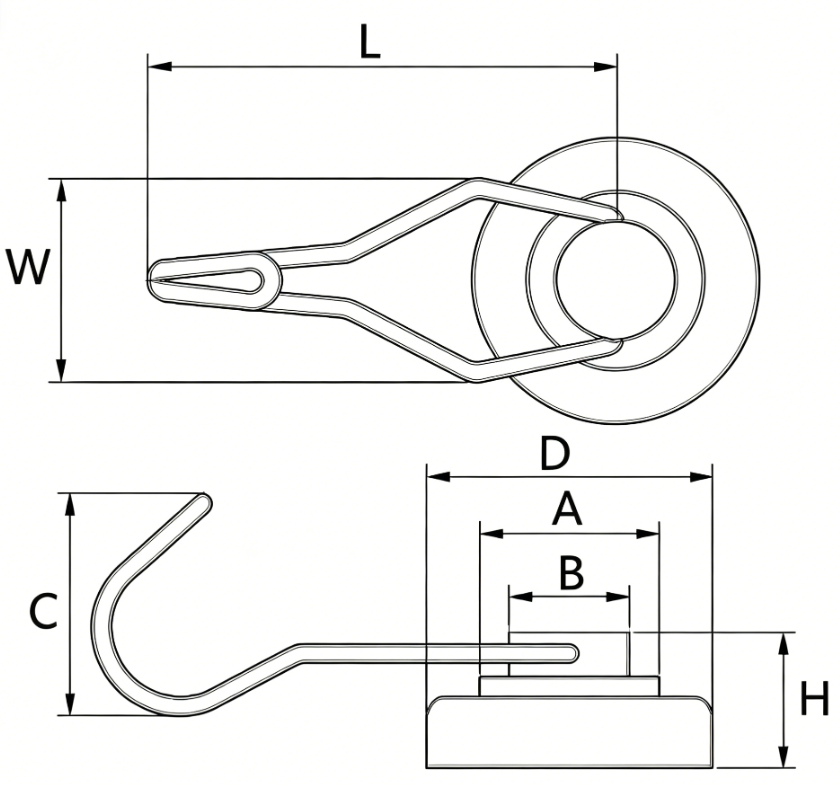

1.Standard Size of Open Magnetic Hooks
| Model | D(mm) | A(mm) | B(mm) | C(mm) | H(mm) | L(mm) | W(mm) | Weight(g) |
Vertical Pull Force(KG) |
Side Pull Force(KG) |
| NSHM16 | 16 | 8 | 8 | 12.5 | 10 | 23.5 | 12.5 | 10 | 8 | 1.5 |
| NSHM20 | 20 | 8 | 8 | 20 | 11 | 36 | 13 | 19 | 15 | 3.1 |
| NSHM25 | 25 | 20 | 13.5 | 24 | 15.5 | 55 | 23 | 38 | 22 | 4.4 |
| NSHM32 | 32 | 20 | 13.5 | 24 | 15.5 | 55 | 23 | 52 | 34 | 6.8 |
| NSHM36 | 36 | 20 | 13.5 | 24 | 15.1 | 55 | 23 | 65 | 41 | 8.2 |
| NSHM42 | 42 | 20 | 13.5 | 24 | 16.5 | 55 | 23 | 92 | 66 | 13.2 |
2.Technical informations
Dimensions: Standard size or custom
Grade of magnet: N35,N42,N52,or higher grade of magnet can be customzed for high temperature requirements,such as M or H series and the temp. resistance is 100 deg.c or 120 deg.c
Processing technology of steel cup: Stamping machining or lathe machining.
Surface treatment: Zinc, Nickel, Chrome, Epoxy coating, Color paint / Custom color coating
Tolerance: +/-0.05mm
Vertically force: From 8 Kg to 66 Kg
3.The main types of Magnetic Hooks
Closed magnetic hooks, open magnetic hooks and swivel magnetic hooks all adopt unified steel housing structure and neodymium magnet configuration with the same material technology, surface treatment, tolerance standard and load range, and all support custom color processing.
The main difference lies in hook structure and functional application:
closed type is anti-drop and safe for heavy-load stable hanging;
open type is easy to operate for daily quick access;
swivel type features angle adjustment for multi-angle complex working conditions.
The whole product line accepts non-standard customization, and one-to-one customized development is available according to customers’ on-site installation conditions, size limits and load requirements.
Swivel Neodymium N52 Magnets Hook
