Three Common Permanent Magnet Materials for PM Motors: Performance, Pros & Cons and Application Selection Guide

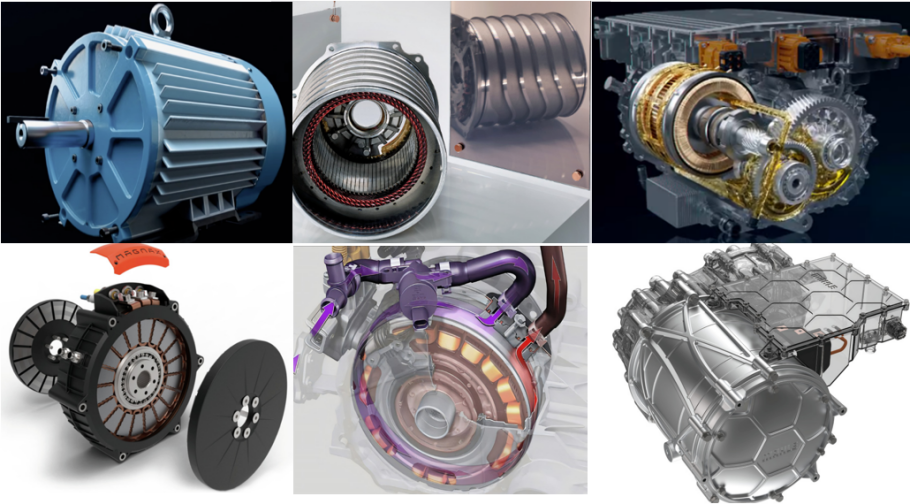

Permanent magnet (PM) motors feature high efficiency and low energy loss, widely adopted in new energy, automation, home appliances and auto parts. Magnet selection determines motor size, power consumption, cost and long-term reliability. Three mainstream magnet options are ferrite, NdFeB rare earth magnet and Alnico alloy with obvious differences in composition, magnetism, heat resistance and price.

1. Ferrite (Ceramic Magnet)

Sintered from iron oxide, barium or strontium oxide, hard ferrite is cost-effective for low-cost motors.

Advantages: Low raw material cost, natural anti-corrosion, stable performance across wide temperature range, ideal for mass production.

Disadvantages: Low magnetic energy product leading to bulky magnet size; brittle and easy to crack under impact.

Applications: Household fan motors, water pump motors, wiper motors, low-power drive motors and regular sensors.

2. NdFeB Rare Earth Magnet

NdFeB owns the highest energy product among commercial permanent magnets, the core choice for high-end PM motors, with multiple grades for working temperature from ambient up to 180°C.

Advantages: Ultra-high remanence and energy density, enabling compact & lightweight motor design; diversified grades for precise motor control.

Disadvantages: Cost fluctuates with rare earth price; prone to rust, requiring plating or overmolding for surface protection.

Applications: EV traction motors, servo motors, robotic motors, fan and high-end variable-frequency motors.

3. Alnico Alloy Magnet

Cast or sintered alloy of Al, Ni, Co and Fe, outstanding thermal stability is its core feature.

Advantages: Excellent high-temperature resistance, stable magnetic output under 500℃, consistent long-term performance and good corrosion resistance.

Disadvantages: Limited energy product, high cost from cobalt content, complex production with long lead time.

Applications: High-temperature special motors, aerospace instrument motors, precision testing equipment and high-temperature sensors.

4. Future Development Trend

As motors trend toward energy-saving and miniaturization, modified rare earth magnets and composite coated magnets keep evolving. Custom encapsulation and special coating become mainstream solutions for motors working in humid, salt-spray or extreme high-temperature environments.

Summary

No single magnet material fits all motor designs; selection relies on motor power, working temperature, budget and installation space. We provide customized magnet solutions including grade matching, dimension design and surface finishing based on your motor specification, supporting prototype development and mass production for all types of permanent magnet motors.
